Description
There are multiple issues when lifting your vehicle with stock upper control arms. Both the geometry and strength are compromised due to over articulating the factory arms. We solved these problems by designing our arms with increased castor and repositioned the pivot angles reducing stress on the joints. The increased castor allows for proper alignment and improved handling. We have also upgraded the factory ball joints with heavy duty Moog ball joints. For the inner pivots we used durable urethane bushings with grease fittings for easy servicing. All of the components on our upper control arms are rebuild-able or replaceable to make this product last a lifetime. The arms come preassembled and include detailed instructions for easy installation.
SPECIFICATIONS
Wheel Travel: Additional 1” of travel compared to stock
Amount of Lift: Allows for 0-3” of lift
Track Width: Stock
\Maximum Backspacing: 4.75”
Minimum Rim Size: 16”
Coil over Shock Size:Factory or OEM replacement coilovers
Tire Info
The upper control arms will allow for 33” tires but the front section of the cab mount may need to be cut to avoid tire rubbing while turning. In addition the front bumper may require trimming for proper tire clearance.

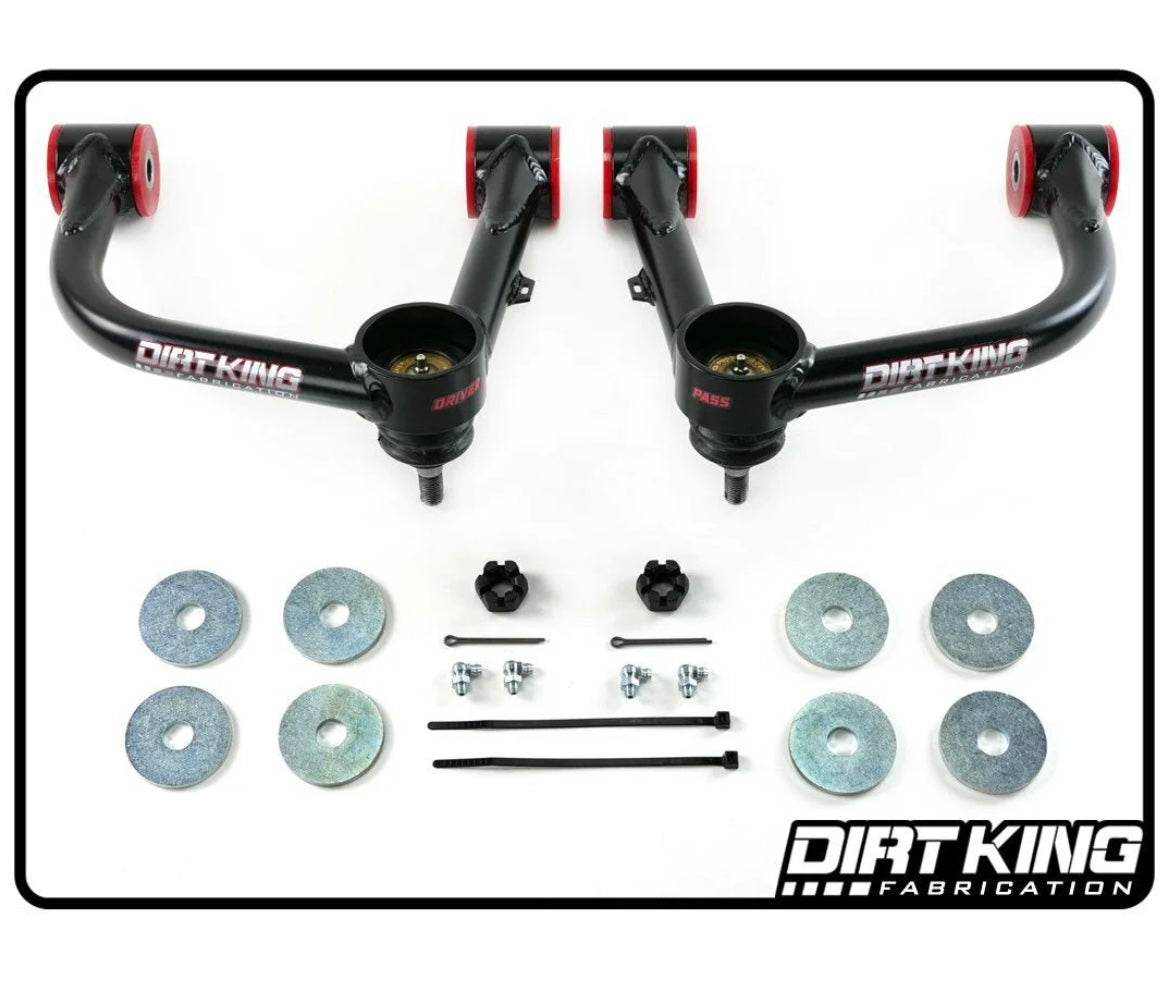

WHAT'S INCLUDED
Chromoly upper control arms
Urethane bushings
Grease fittings
1” FK uniballs

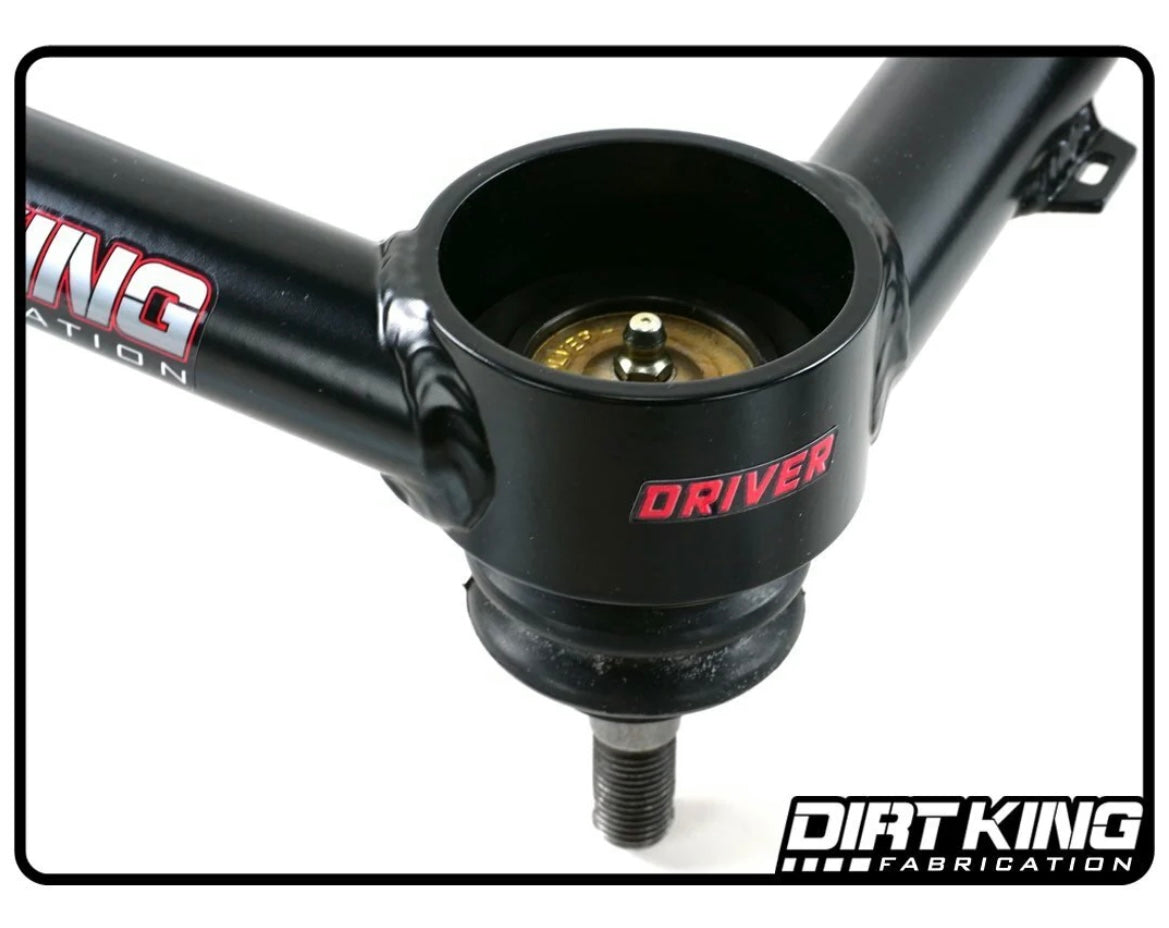

Moog ball joints
Upgraded dust boots
Zinc plated bushing washers
Zinc plated inner bushing sleeves
Durable black powder coat
Dirt King sticker pack
Installation instructions
FEATURES
CAD designed
Formed steel bushing gussets
Constructed with 4130 chromoly tubing
Preassembled for fast installation
Grease fitting ports for easy servicing
Zinc plated components for corrosion resistance
Professionally MIG welded
Proudly made in the USA
